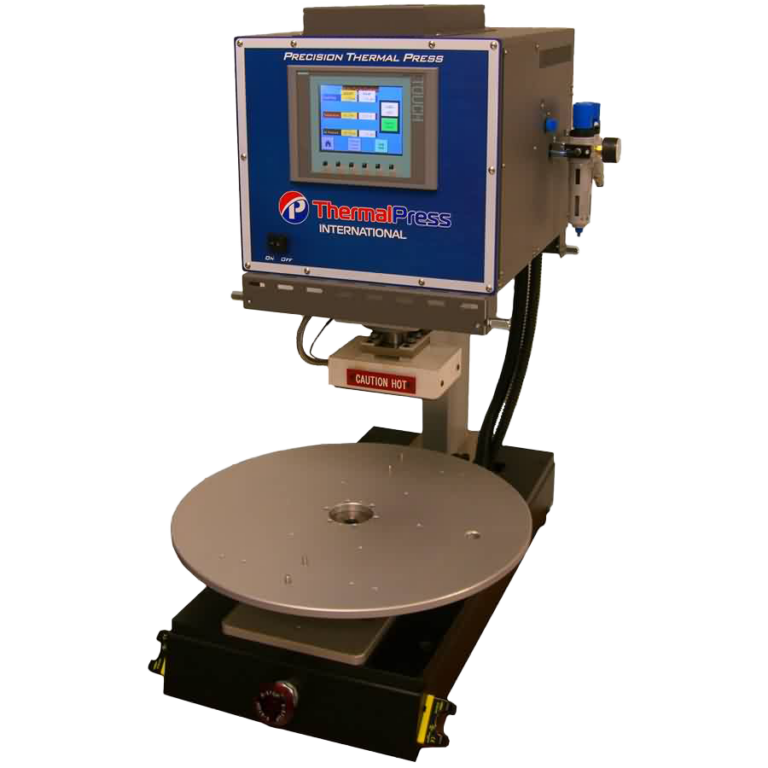

The heat staking process is widely used in manufacturing to join plastic components into strong, permanent assemblies. By applying controlled heat and pressure, thermoplastic posts are formed to mechanically lock parts together without the need for screws or adhesives. In this guide, we explain how heat staking works, key design considerations, and where it is used across industries. Manufacturers often rely on specialized heat staking equipment to achieve consistent and repeatable results.
Introduction: Heat staking involves the precise application of heat and pressure to melt and reshape a thermoplastic stud, facilitating the secure attachment of similar or dissimilar materials. Widely employed across diverse industries such as automotive, appliance, electronics, telecommunications, and medical sectors, heat staking proves indispensable for assembling components efficiently and economically.
 |  |
How the Heat Staking Process Works
A typical heat staking cycle involves five stages:
- Position: Place the components in a fixture that aligns the thermoplastic posts with the forming tooling.
- Heat: Apply controlled heat to soften the thermoplastic material.
- Form: Apply pressure to reshape the softened posts into retaining heads that secure the components.
- Cool: Allow the formed material to cool and stabilize. Cooling may occur while the tooling maintains contact or after it retracts, depending on the equipment and application.
- Release: Retract the tooling as appropriate and remove the completed assembly.
Temperature, pressure, dwell time, and cooling requirements depend on the material, post geometry, tooling, and assembly requirements.
Heat Staking Design Tips: Successful heat staking begins with meticulous design considerations. By integrating post design and material selection into the initial development phase, manufacturers can achieve consistent, high-quality results. The direct-contact method, employing heated probes and pressure, emerges as a preferred approach for clean, odorless staking without the drawbacks of traditional methods.
Heat Staking Direct Contact Method: Central to the direct-contact method is the utilization of heated probes in conjunction with pressure to compress and form studs, effectively joining plastic components or combining plastic with other materials. This technique offers versatility across various plastic materials, including ABS, polystyrene (PS), polypropylene (PP), polycarbonate (PC), and glass-reinforced nylon (GFN).
Heat Swaging in Heat Staking Applications: Sometimes referred to as hot swaging or thermal swaging, heat swaging is a specialized form of heat staking that utilizes controlled heat and pressure to deform and reshape thermoplastic features such as collars, ridges, or flanges. Rather than forming a traditional staked stud head, heat swaging creates a mechanical interlock by reforming these features around an insert, connector, or mating component. This technique is commonly used in medical devices, electronics, and other precision assemblies where dimensional control, repeatability, and clean assembly are critical.
Heat Staking Design Considerations: Design guidelines for effective heat staking encompass crucial factors such as post diameter, height, and geometry. Optimal working heights, typically 1.5 to 2.0 times the post diameter, ensure desirable stud-head proportions. Different post geometries, including flat-tip, dimpled, cross-shaped, or rosette-shaped, cater to specific application needs, offering solutions for structural integrity, aesthetic appeal, and functionality.
For detailed dimensional guidelines and illustrations of six common staking configurations, see our Thermal Staking Probe Tip Designs & Post Geometry Guide. For additional technical discussion of staking post geometry, thermal tooling profiles, and post-cooling methods, see The Heat Stake Advantage, originally published in 2003 by Gary Sullivan and Lance Crawford.
Heat Staking Disassembly: The disassembly of heat-staked assemblies, whether for recycling or reworking purposes, demands precision in heat and pressure control. High-heat piercing with pointed probes facilitates the clean removal of stud heads, enabling efficient disassembly. Reassembly options include utilizing alternate holes with self-tapping hardware or performing a secondary staking operation on reworked parts.
Conclusion: Mastering the art of heat staking requires a deep understanding of material properties, design principles, and assembly techniques. With meticulous attention to detail and the right equipment, manufacturers can harness the full potential of heat staking for streamlined production processes and durable assembly solutions. You can also see the heat staking process in action in our video library.
